Statement Coverage vs Branch Coverage: Key Differences

Adwitiya Pandey
Published on

Table of contents
Lorem ipsum
Lorem ipsum
Lorem ipsum
Lorem ipsum
Lorem ipsum
A team ships a release with 100% statement coverage, and within two days a bug turns up in production. The code that broke was covered by the tests. Every line had run and every test had passed, but the bug was real and customers felt it.
How does that happen? It comes down to the difference between statement coverage and branch coverage. The maths behind them looks almost the same, but the gap between them can let real bugs through.
In this guide, we’ll explain what each one measures, how to calculate them, a worked example that shows the difference straight away, where they sit alongside other coverage metrics, which tools measure them, the common mistakes teams make, and what changes when AI is writing your code.
What’s the Difference Between Statement Coverage and Branch Coverage?
Statement coverage measures the percentage of code statements your tests ran. Branch coverage measures the percentage of decision outcomes your tests took, meaning both the true and false side of every if, switch or loop.
Branch coverage is the stricter one. If you hit 100% branch coverage, you’ll normally hit 100% statement coverage too, but 100% statement coverage doesn’t mean you’ve hit 100% branch coverage.
In practice, that means statement coverage can show 100% while a big chunk of your decision logic has never been tested. The two numbers answer different questions, and treating one as the other is one of the most common ways teams end up with false confidence.
A Worked Example
Here’s a simple function that works out a shipping cost. It has six statements and two decisions:
Now here’s a single test:
The test passes, and every line runs, so statement coverage shows 100%.
But each if has two possible outcomes, and this test only takes the “true” side of both. The “false” sides never run, so only two out of four branches are tested. That’s 50% branch coverage.
Those untested branches are where the risk hides. If someone changed weight > 10 to weight >= 10, broke the express multiplier for standard parcels, or got the base cost wrong for light parcels, this test wouldn’t notice. Statement coverage would still say 100%.
Adding one more test fixes the branch coverage:
With both tests, every decision has been both true and false, so branch coverage reaches 100%. There are still four possible combinations in total (heavy and express, heavy and standard, light and express, light and standard), and testing all four would give you path coverage. More on that below.
What is Statement Coverage?
Statement coverage, often shown as line coverage in tool reports, is the simplest and oldest code coverage metric. It checks that every statement in your code has run at least once during testing.
How Statement Coverage is Calculated
The formula is direct.
Statement Coverage = (Executed Statements / Total Executable Statements) × 100
A program with 200 executable statements where 180 are touched by the test suite reports 90 percent statement coverage. The metric ignores how often a statement was executed, with what inputs, and in what sequence.
Strengths of Statement Coverage
The metric earns its place for three reasons.
It is the easiest coverage metric to understand and explain to non-engineers, which makes it useful in cross-functional conversations about test adequacy.
It is computationally cheap, since most modern coverage tools produce it by default with negligible overhead.
It surfaces dead code quickly, because code that no test ever executes is either unreachable, redundant, or insufficiently tested, and all three are useful findings.
Limits of Statement Coverage
The same simplicity that makes statement coverage easy to compute is what makes it shallow. A statement can be executed without its logic being exercised, and a function can run end to end without any of its conditional branches being tested in both directions.
A high statement coverage number is necessary but not sufficient, and treating it as sufficient is where teams lose accuracy.
What is Branch Coverage?
Branch coverage measures whether every possible outcome of every decision point has been exercised by tests, going deeper than statement coverage by inspecting the logical structure of the code rather than its line structure.
How Branch Coverage is Calculated
Branch coverage = (branches taken ÷ total branches) × 100
If a program has 40 branches and your tests take 30 of them, branch coverage is 75%. Every possible outcome counts, so:
Code Structure | Branches It Adds |
|---|---|
if/else | 2 (true and false) |
Three-way switch | 3 |
Loop | 2 (loop runs, loop skipped) |
Branches, Decisions, and Conditions
Different tools and standards use slightly different terms, and it helps to know the difference:
Term | What it Counts |
|---|---|
Branch coverage | Every path out of every decision point |
Decision coverage | Every true or false outcome of a decision. Usually the same as branch coverage, but it can differ when short-circuit logic (like |
Condition coverage | Every individual part of a combined condition, like |
Most popular tools report “branch coverage”, which is usually the same as decision coverage in practice. When your code has lots of combined conditions, condition coverage and MC/DC (modified condition/decision coverage) become more relevant.
Strengths of Branch Coverage
Branch coverage uncovers gaps that statement coverage cannot see. Conditional logic is where most production defects live, and branch coverage forces tests to exercise each path through the decision graph.
The metric also pairs naturally with risk-based testing, since the parts of the code with the highest branching density are usually the parts where business logic is concentrated.
Limits of Branch Coverage
Branch coverage is harder to achieve than statement coverage and can be expensive on legacy code with deeply nested conditionals.
Pursuing 100 percent branch coverage without a risk lens leads to vanity test cases that exist only to flip a flag and produce no real assurance. The metric also stops at the control-flow boundary, so branch coverage does not measure whether the customer outcome actually held.

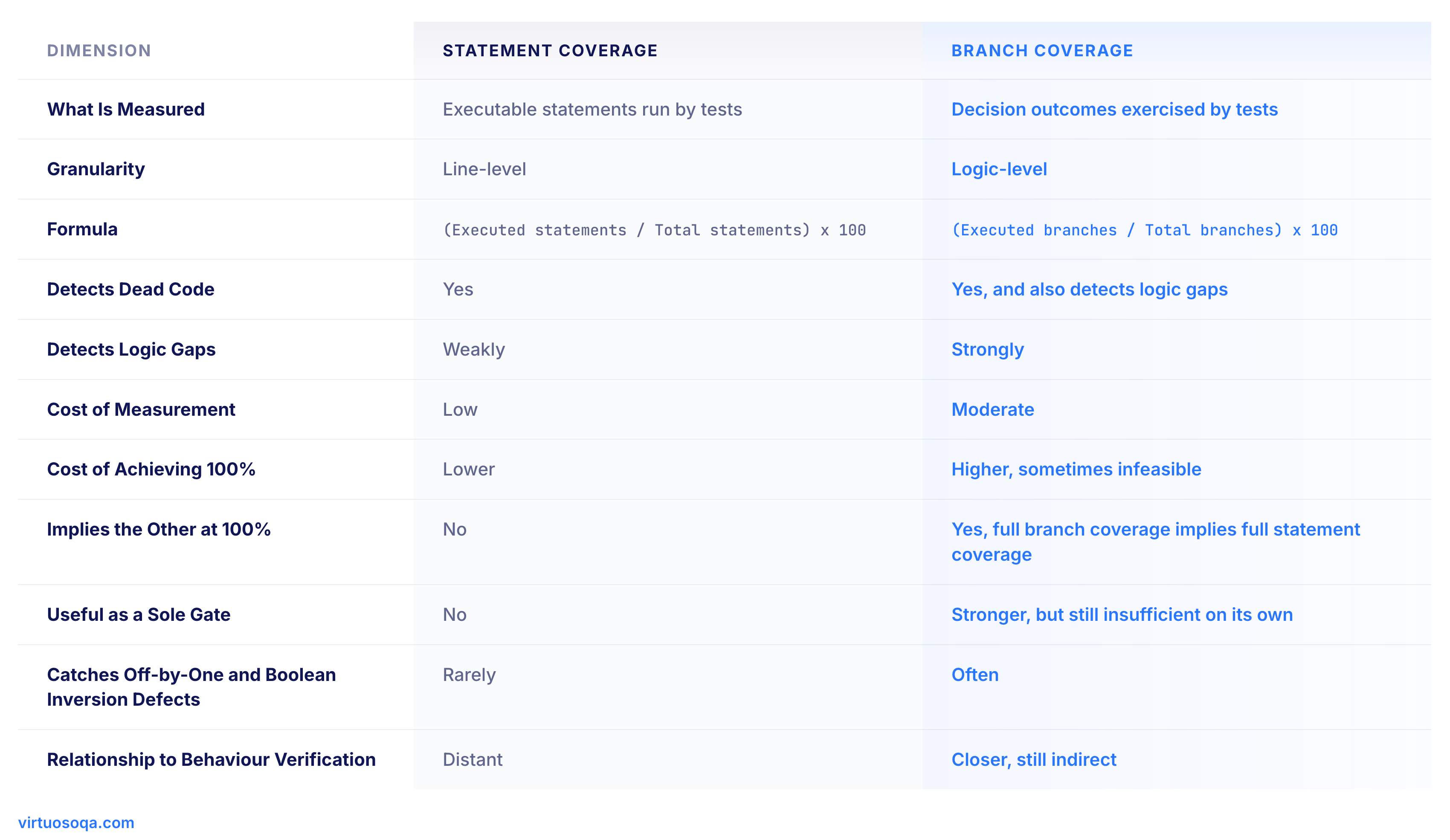

Statement Coverage vs Branch Coverage Compared
Statement Coverage | Branch Coverage | |
|---|---|---|
What it counts | Statements that ran | Decision outcomes that were taken |
Level of detail | Lines | Logic |
Formula | Statements run ÷ total statements | Branches taken ÷ total branches |
Finds dead code | Yes | Yes |
Finds untested logic | Weakly | Strongly |
Catches off-by-one and flipped condition bugs | Rarely | Often |
Cost to measure and to reach 100% | Low | Higher, sometimes unrealistic on deeply nested old code |
Does 100% imply the other? | No | Usually yes, 100% branch coverage normally includes 100% statement coverage |
Safe as the only release gate? | No | No, it still doesn’t check customer outcomes |
How close it is to real user behaviour | Distant | Closer, but still indirect |
The key row is “finds untested logic”. That’s how a team can show 100% statement coverage while a whole false branch has never been tested.
Where They Fit Among Other Coverage Metrics
Code coverage metrics stack up, with each one stricter than the one below it.
Level | Metric | What It Checks |
|---|---|---|
1 | Function coverage | Every function was called at least once |
2 | Statement coverage | Every statement ran at least once |
3 | Branch or decision coverage | Every decision outcome was taken |
4 | Condition coverage | Every part of a combined condition was both true and false |
5 | MC/DC | Each condition can change the decision’s outcome on its own |
6 | Path coverage | Every combination of branches was run |
Function and statement coverage are the minimum. Branch coverage is the sensible standard for most enterprise systems. Condition coverage and MC/DC matter where there’s a lot of combined logic, or where regulations require them.
For example, DO-178C requires MC/DC for the most safety-critical airborne software. Path coverage is the strictest, but it’s unrealistic for most real programs, because the number of paths grows very quickly with every branch you add.
Tools That Measure Statement and Branch Coverage
Tool | Language | Notes |
|---|---|---|
JaCoCo | Java | Reports both line and branch coverage |
coverage.py | Python | Reports statement coverage by default. Add |
Istanbul (nyc) | JavaScript and TypeScript | Reports statements, branches, functions and lines |
gcov and lcov | C and C++ | Line and branch coverage, often used with GCC |
Coverlet | .NET | Line, branch and method coverage |
Check which kind of branch coverage your tool reports, since the details vary slightly between tools.
Common Mistakes with Statement and Branch Coverage
Treating statement coverage as proof: 100% statement coverage can still leave half your decisions untested, like the shipping example.
Using one target for the whole codebase: A pricing engine and a logging helper don’t need the same threshold.
Writing tests just to hit a number: Tests that flip a flag without checking the result raise coverage but don’t catch bugs.
Forgetting assertions: Coverage counts code that ran, not whether the test checked anything.
Stopping at code coverage: Even 100% branch coverage can’t tell you whether a customer journey still works.
How Much Statement and Branch Coverage Should You Aim For?
Use statement coverage as your minimum, not your goal: If your CI doesn’t even show statement coverage, you can’t see what’s being tested.
Use branch coverage as your standard for unit and integration tests: Set higher thresholds for code that carries more business risk, rather than one number for everything.
Only use condition coverage and MC/DC where you need them: Like code with lots of combined conditions or where regulations ask for it. Most enterprise web and SaaS code doesn’t need MC/DC, and the effort usually isn’t worth it.
Treat path coverage as a way of thinking, not a target: It helps you reason about complexity, but you won’t reach it on real systems.
Always pair coverage with journey tests: A pull request that drops branch coverage by two points is worth a look. A pull request that breaks a critical customer journey should block the release.
That last point is where code coverage hits its limit. Branch coverage tells you the decisions were tested. It can’t tell you whether the customer still got the right result after the code changed. That needs a different kind of test.
Our guide to code coverage vs test coverage explains how code coverage and journey coverage fit together, and what to trust before a release.
What Changes When AI Writes Your Code
AI coding assistants change how much you can rely on these numbers:
AI-written tests can inflate coverage. It’s easy to ask an assistant for tests that raise coverage, and it will often write tests that run code without checking much. Statement coverage goes up, and branch coverage might too, but you haven’t proved much more.
Refactors move the branches around. When AI restructures code, branches get split, merged or moved, so coverage numbers can jump around even when behaviour hasn’t changed.
Reviewers can’t check every branch. With more code coming in, it’s harder for people to notice which branches don’t have tests.
Branch coverage is still a useful check on AI-written code, especially for spotting untested decisions. But the more code AI writes, the more you need journey-level tests that check what the customer actually experiences.
How Virtuoso QA Fits In
Statement and branch coverage belong to unit and integration testing, and they’re good at catching logic gaps early. Virtuoso QA works one level up. It tests journeys through the application the way a customer would use them, so you know the outcome still holds even after the code underneath has been refactored.
For example, if a refactor of your shipping logic means standard parcels are now charged the express rate, your unit tests might still pass. A Virtuoso QA journey that adds a light parcel to the basket, picks standard delivery and checks the total at checkout would catch it.
You write journeys in plain English, based on what should happen at checkout, rather than how the code is structured.
When the checkout page changes, Virtuoso QA suggests fixes for your team to approve, so the journey keeps checking the total without being rewritten.
The same journeys run across 2,000+ browser and OS combinations, without copying tests.
To see how Virtuoso QA tests whole customer journeys across screens, APIs and data, take a look at end-to-end testing.
Statement Coverage vs Branch Coverage FAQs
What Is Statement Coverage in Software Testing?
What Is Branch Coverage in Software Testing?
Does 100% Statement Coverage Mean 100% Branch Coverage?
Can Branch Coverage Be 100% Without 100% Statement Coverage?
Why Is Branch Coverage Stronger Than Statement Coverage?
How Does AI-Generated Code Affect These Metrics?
